Product Description

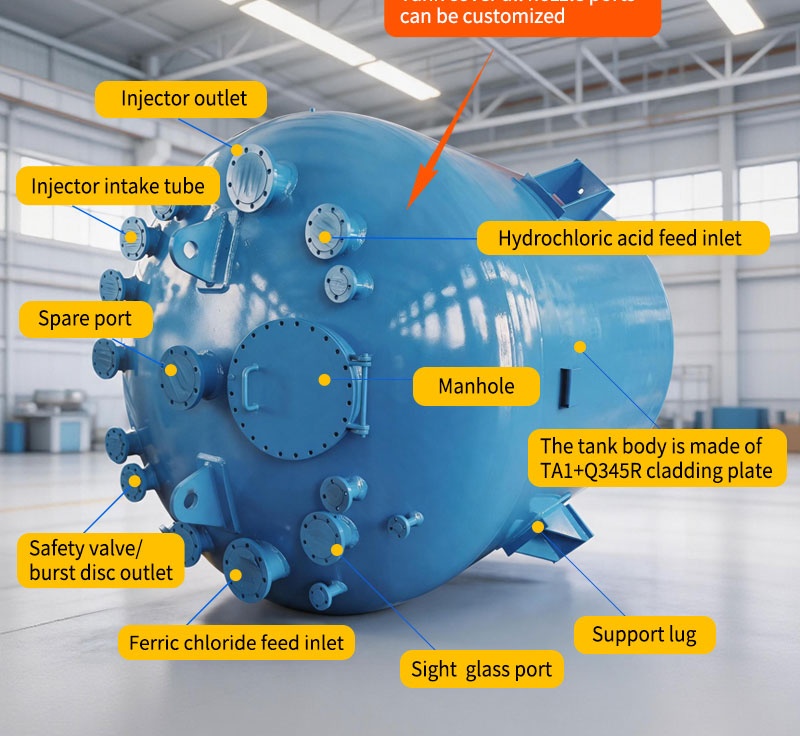

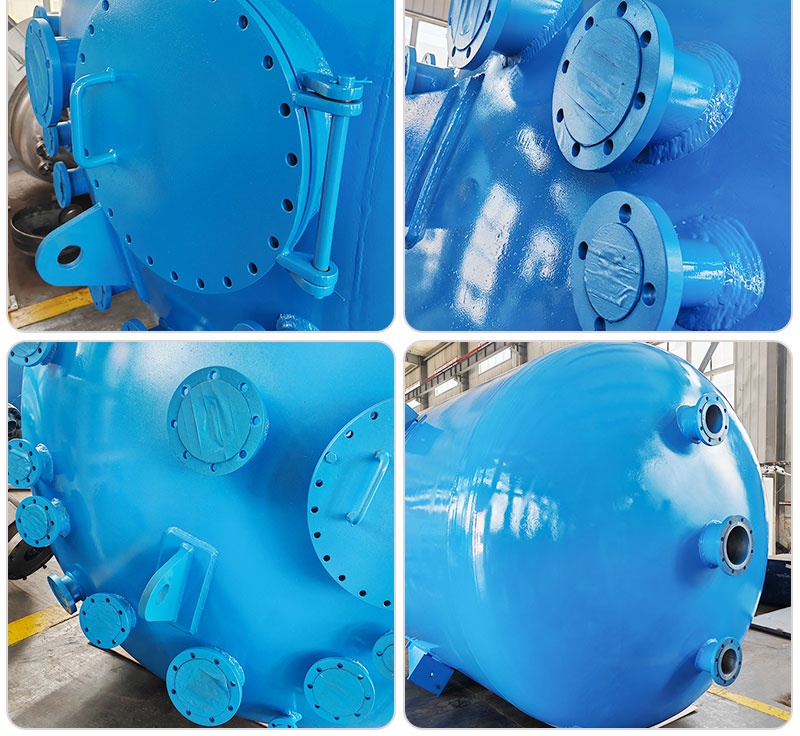

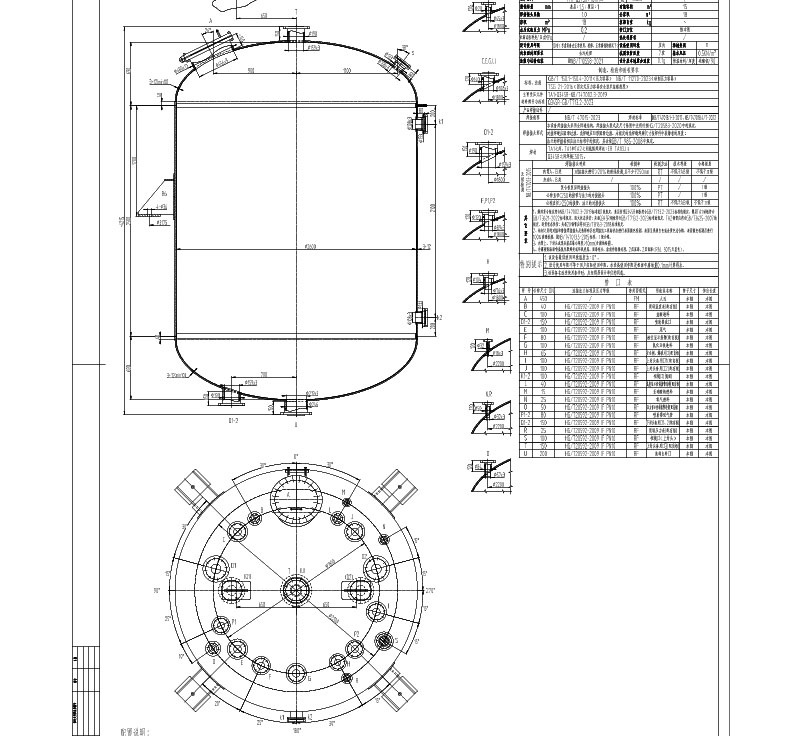

The 20000L Titanium Jacketed Reactor is an ASME, CE, and EAC certified titanium reaction vessel engineered for highly corrosive chemical synthesis and industrial process applications where pure titanium wetted parts are required. Fabricated using advanced solid titanium or titanium cladding plate, it offers unparalleled chemical compatibility, corrosion resistance, and operational safety at elevated temperatures.
Key Features & Technologies
- Titanium Construction: Pure Titanium (Gr. 1, Gr. 2) wetted parts to resist aggressive nitric, hydrochloric, and organic acids.
- Zero Leakage Magnetic Drive: Static sealing technology prevents any gas bypass or leakage.
- ASME Code Compliant: Stamped and certified design pressure ratings ensuring standard structural integrity for chemical processing plants.
- Customizable Agitator: Tailored blade options for high-efficiency mass transfer and reaction kinetics.
Technical Specifications Comparison
| Work Volume | 1000L | 2000L | 3000L | 5000L | 8000L | 10000L | 20000L |
| Structure Type | Close type (with man hole) | ||||||
| Design Pressure (Mpa) | Negative 0.1-15 | Negative 0.1-15 | Negative 0.1-15 | Negative 0.1-10 | Negative 0.1-10 | Negative 0.1-10 | Negative 0.1-10 |
| Design temperature | -196-300℃ | -196-250℃ | |||||
| Mixing Speed | 0-800 r/min | 0-500 r/min | |||||
| Motor | Ordinary AC motor, or Explosion-Proof motor as per customer request. | ||||||
| Motor Power | 5.5 KW | 11 KW | 15 KW | 22 KW | / | ||
| Heating Power | 48 KW | 60 KW | 75 KW | 90 KW | / | ||
| Heating Style | Far infrared electric heating, electric heater with thermal oil bath, jacket circulation with thermal oil/steam/melt salt | Jacket circulation with thermal oil/steam/melt salt | |||||
| Discharging Style | Discharging from bottom, or sampling from kettle lid | ||||||
| Mixer Shaft | Self-lubricating wear-resistant sleeve made of stainless steel, suitable for mixing various medium under high speed. | ||||||
| Mixing Style | Impeller, paddle, anchor, turbine, self-suction style, or as per customer’s request. | ||||||
| Seal Type | Magnetic Seal / Mechanical Seal / Packing Seal | ||||||
| Reactor material | Tank inner contacting materials option: All kinds of stainless steel, such as SS304, SS316L,SS321,310S,S32205, and Titanium,Hastelloy,Zirconium,Nickel etc., as the reaction actual needed. | ||||||
| Tank Lid Open Port | Gas port, Liquid port, Thermowell port, Solid feeding port, Pressure gauge, Burst disc (safety valve) port, Man hole (Hand hole), Cooling water inlet/outlet port (or Visual Glass Port and other port according to working pressure) | ||||||
| Controller |
|
||||||
| Other Accessories | If the user have other special requirements on kettle cover, kettle body openning, internal structure, high and low pressure, stirring paddle and other supporting device (such as refluxing unit, condenser, constant feeding tank, collector, etc) we can manufacture ODM reactors according to users’ requests. | ||||||
