6000L SS316L Clad-Plate Catalytic Reactor

Product Description

The 6000L SS316L Clad-Plate Catalytic Reactor is a jacket-heated industrial batch reactor selected for the Alton Machinery catalogue as a higher-quality, specification-rich model rather than a duplicate placeholder listing. It is positioned for custom chemical, catalytic, resin, coating and specialty-process projects where the vessel package is configured to the buyer’s exact process conditions.

Configuration Notes

• Full volume: 6700 L; working volume: 6000 L.
• Material reference: SS316L+Q345R with 16MnⅡ structural support as shown in the source specification table.
• Pressure reference: -0.1~0.8 MPa design pressure and -0.1~0.6 MPa working pressure.
• Temperature reference: 160 °C design temperature and 145 °C working temperature.
• Agitation reference: 0~253 r/min with 22KW explosion-proof motor configuration noted by the source.
• Public price, stock status, supplier article codes and source-brand references are intentionally omitted; final scope is confirmed by quotation.

Product Structure

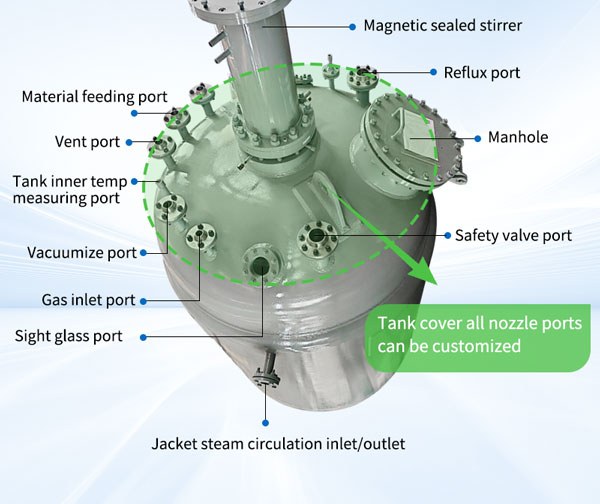

Top nozzle and cover layout

The cover layout includes feed, reflux, vent, safety and auxiliary ports, allowing the reactor to be adapted to the process instrumentation and utility package.

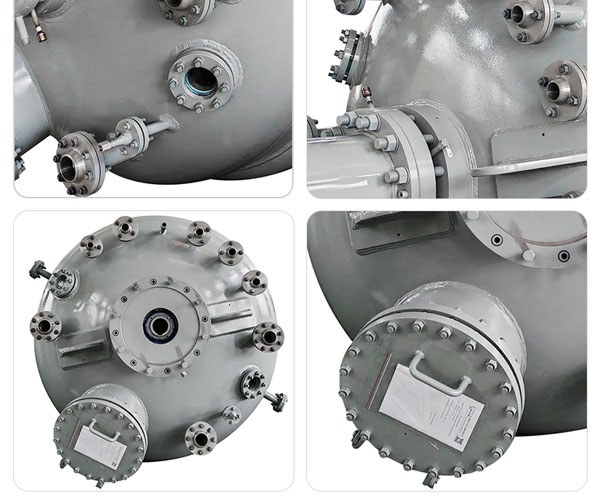

Nozzle and manhole details

Detail views show the practical vessel interfaces that matter during specification: manway access, nozzle grouping, flange orientation and inspection openings.

Product Features

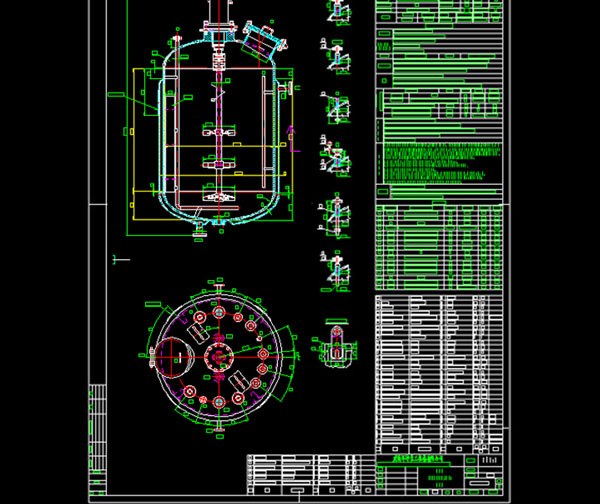

Engineering drawing reference

The drawing-style view is kept as a technical reference for vessel proportions, agitation arrangement and nozzle positions during engineering discussion.

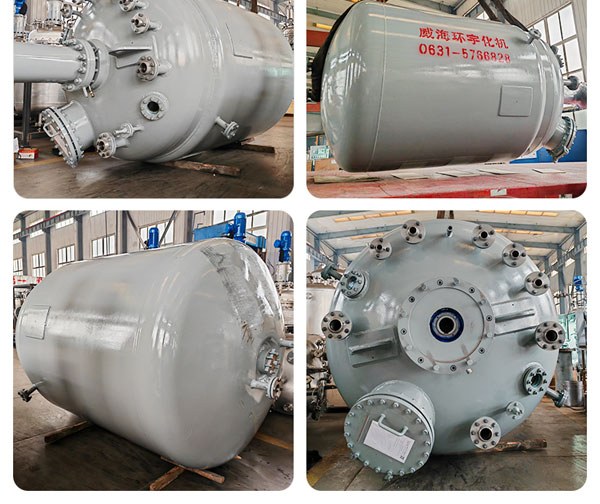

Industrial workshop build

Workshop and finished-vessel views confirm that this is a real industrial equipment package, not a generic catalogue render.

Technical Specifications Comparison
